Introduction

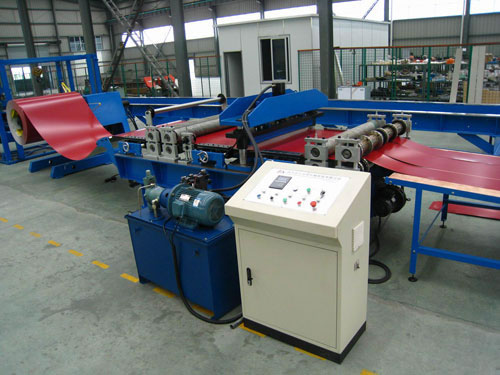

The filming and slitting machine is made up of feeding, filming, cutting and slitting. By using the high grade No.45 carbon wrought steel as shaft material, we improve the integrated mechanic feature of the shaft. Besides, we use the Cr12 mould steel as material as it has strong strength and hardness to slit the coil sheet.

Main Components

Guiding, filming device, cutting device, slitting device, bracket, hydraulic system, electronic control system

Workflow

guiding and filming→cutting to set length→slitting the sheet to pieces Trips→bracket

Packing and Shipping

The main machine is nudely packed in the container and the spare parts are put in the wooden box.

As a professional filming and slitting machine manufacturer in China, Smartech Machinery Manufacturing Co., Ltd supply deck floor forming machine, guardrail roll forming machine, purlin profile forming machine, double layer forming machine, down pipe forming machine, etc. We have obtained the authentication of ISO9001:2000 quality management system. Our products are popular in Europe, Middle East, Southeast Asia, and South Africa such as Romania, Ukraine, Surinam, India, Russia, Brazil, Portugal, Honduras, Egypt, Bangladesh, etc. If you need filming and slitting machine, please contact us freely.

Technical Parameters

Suitable coil	1000-1250mm
Material strength	230-300Mpa
The parameter of sheet coil	Inner diameter φ508 or 610 Outer diameter 1350 mm
Thickness of material	0.3~0.7mm
Number of Slitting Knives	12 sets
Slitting strip	The strips should be Min 60mm (adjustable.)
Length tolerance	+/_ 1.5mm in 3M in length
Slitting speed	10M/min
Motor power	slitter power 2.2KW(according to the final design)
Cutting	cutting to length automatically
Power source	380V/3phase/50Hz
