Description

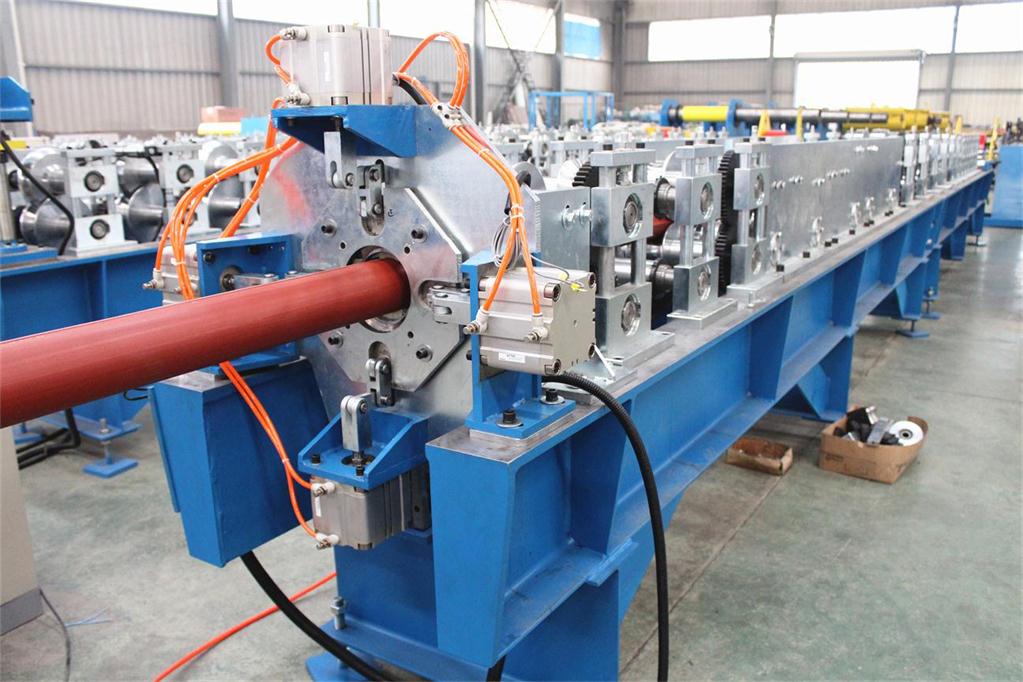

Downspout Roll Forming Machine is a profiling machine of metal square and round pipe. The Downspout Roll Forming Machine is a special equipment for continuous rolling and cold-forming on steel sheet.It adopts coiling steel sheet as the raw material, through continuous rolling and cold-forming, the sheets are automatically cut to the size and specification required.

Main Parts of the Downspout Roll Forming Machine


Decoiler, guiding system, roll forming system, cutting system, electric controlling system, hydraulic system, supporter

Package and Transportation


The main machine is barely loaded in the container and the spare parts are put in the wooden box.

Parameters


NO Item Para Remark
1 Suitable Material Type Color Steel Sheet
Thickness (mm) 0.4 to 0.7
Yield Strength (Mpa) 230 to 300
(mm) ≤1250
Capacity of Decoiler 5T/8T/10T According to Customer
2 Material of Rollers No.45 Hard Chromeplate
3 Line Speed (m/min) 20
4 Roller Shaft Supporting Structure guiding column
5 Electric Control System PLC Brand: Mitsubishi or Siemens
6 Operation Desk Touch Screen + Button

Components


No Name Quantity Remarks
1 Decoiler 1set Up to Customer
2 Main Machine Pre-cutting Device 1set Up to Customer
Feeding Device 1set
Filming Device 1set Up to Customer
Roll Forming System 1set
Movable Safety Guard 1set Up to Customer
Post Cutting Device 1set Without Waste
Hydraulic System 1set
3 Electric Control System 1set
4 Supporter/Automatic Stacker 1set Up to Customer
