Description

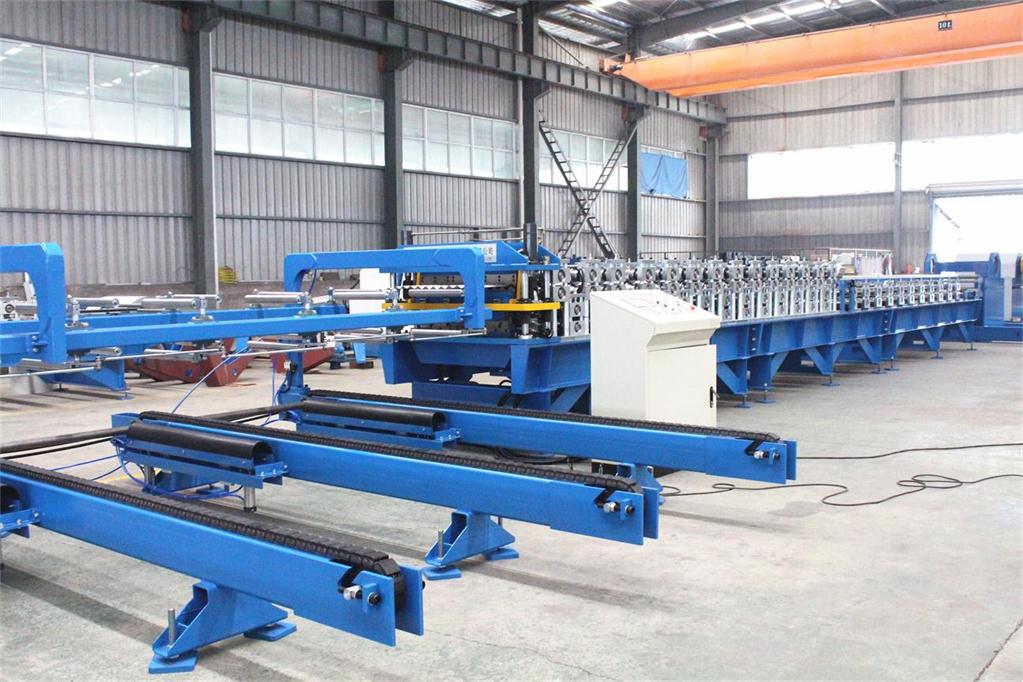

Double layer Roll Forming Machine is a cold roll forming machine with two layers of roller groups. The upper layer is for one profile while the lower layer is for another profile sheets. When producing the upper profile, the down profile will stop working and vise versa. The roof sheet profiling machine is a space-saving and high efficiency pre-engineering building material making machine and it’s used all over the world.
Main Parts of the Roof Sheet Profiling Machine
Decoiler, guiding system, roll forming system, cutting system, electric controlling system, hydraulic system, supporter
Package and Transportation
The main part of the Cold Roll Forming Machine is barely loaded in the container and the spare parts are put in the wooden box.
Parameters
NO
|
Item
|
Para
|
Remark
|
1
|
Suitable Material
|
Type
|
Color Steel Sheet
|
|
Thickness (mm)
|
0.4 to 0.7
|
|
Yield Strength (Mpa)
|
230 to 300
|
|
(mm)
|
≤1250
|
|
Capacity of Decoiler
|
5T/8T/10T
|
According to Customer
|
2
|
Material of Rollers
|
No.45 Hard Chromeplate
|
|
3
|
Line Speed (m/min)
|
20
|
|
4
|
Roller Shaft Supporting Structure
|
Guiding Column
|
|
5
|
Electric Control System
|
PLC
|
Brand: Mitsubishi or Siemens
|
6
|
Operation Desk
|
Touch Screen + Button
|
|
Components
No
|
Name
|
Quantity
|
Remarks
|
1
|
Decoiler
|
1set
|
Up to Customer
|
2
|
Main Machine
|
Pre-cutting Device
|
2sets
|
Up to Customer
|
Feeding Device
|
2set
|
|
Filming Device
|
1set
|
Up to Customer
|
Roll Forming System
|
2sets
|
|
Movable Safety Guard
|
1set
|
Up to Customer
|
Post Cutting Device
|
1set
|
With double layer cutting blades
|
Hydraulic System
|
1set
|
|
3
|
Electric Control System
|
1set
|
|
4
|
Supporter/Automatic Stacker
|
1set
|
Up to Customer
|
