Description

step tile roll forming machine price is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Application

Step tile roll forming machine is used to manufacture metal roof tiles for steel-structured buildings in constructional engineering.

Advantages

1. The roller shaft is supported by guiding column.
2. Double-chain transmission
3. Electric motor driven, with dynamos in every section
4. PLC Brand: Mitsubishi & Siemens
5. Producing speed can reach to 8-9m/min

Lead Time & Delivery

Lead Time & Delivery
60 days to produce after receiving the down payment.
Payment
30% TT for down payment, the rest of the contract value should be paid by TT before shipment.

Parameters

No. Item Para Remark
1 Suitable Material Type Aluminum/Color Steel Sheet
Thickness (mm) 0.3 to 0.7 Aluminum Sheet
0.5 to 0.6 Color Steel Sheet
Yield Strength (Mpa) 230 to 300
(mm) ≤1250
Capacity of Decoiler 5T/8T/10T According to Customer
2 Material of Rollers No.45 Hard Chromeplate
3 Line Speed (m/min) 4 to 5 Cutting Time Excluded
4 Roller Shaft Supporting Structure Guiding Column
5 Adjustable Step Length Scope 200 to 350 (mm)
6 Electric Control System PLC Brand: Mitsubishi or Siemens
7 Operation Desk Touch Screen + Button

Components

No. Name Quantity Remarks
1 Decoiler 1set Up to Customer
2 Main Machine Pre-cutting Device 1set Up to Customer
Feeding Device 1set
Filming Device 1set Up to Customer
Roll Forming System 1set
Movable Safety Guard 1set Up to Customer
Punching Die and Post Cutting Device 1set

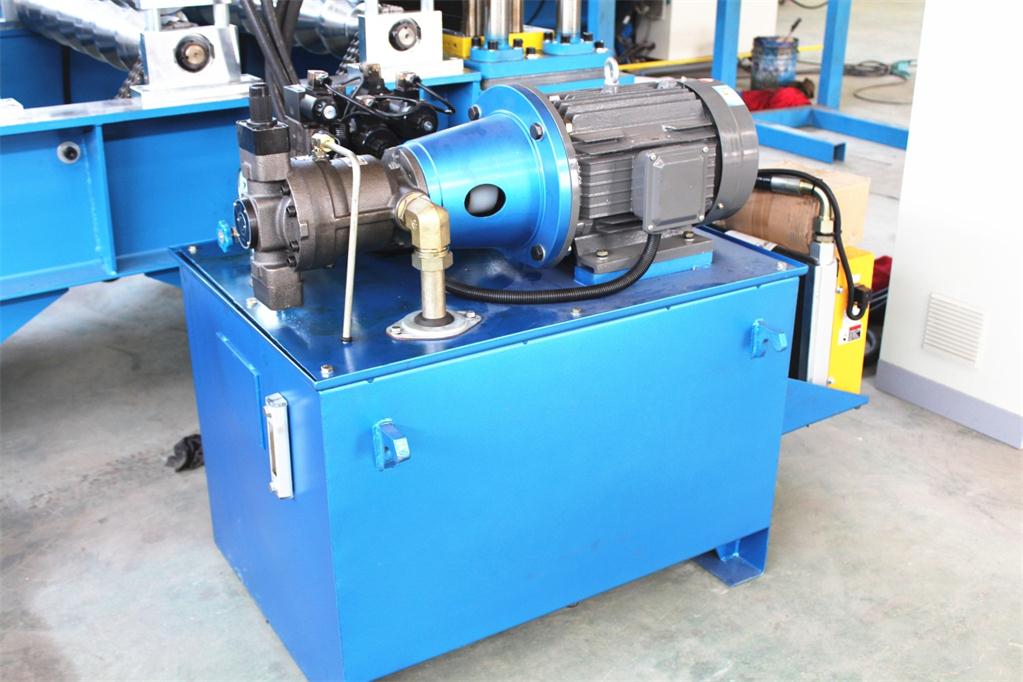

Hydraulic system 1set
3 Electric Control System 1set
4 Supporter/Automatic Stacker 1set Up to Customer
