Description

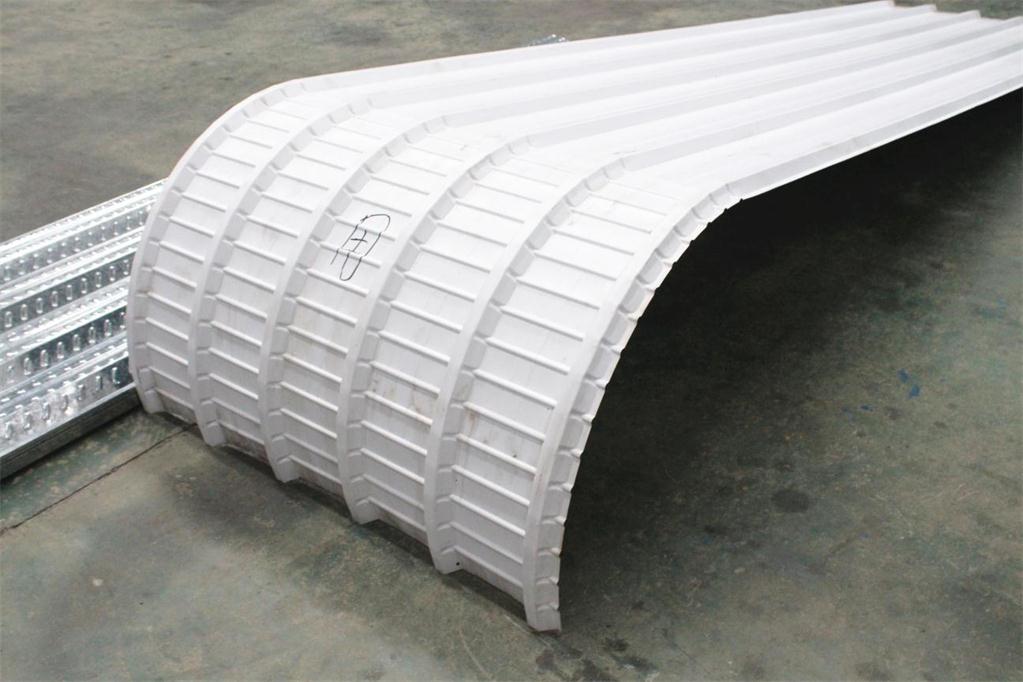

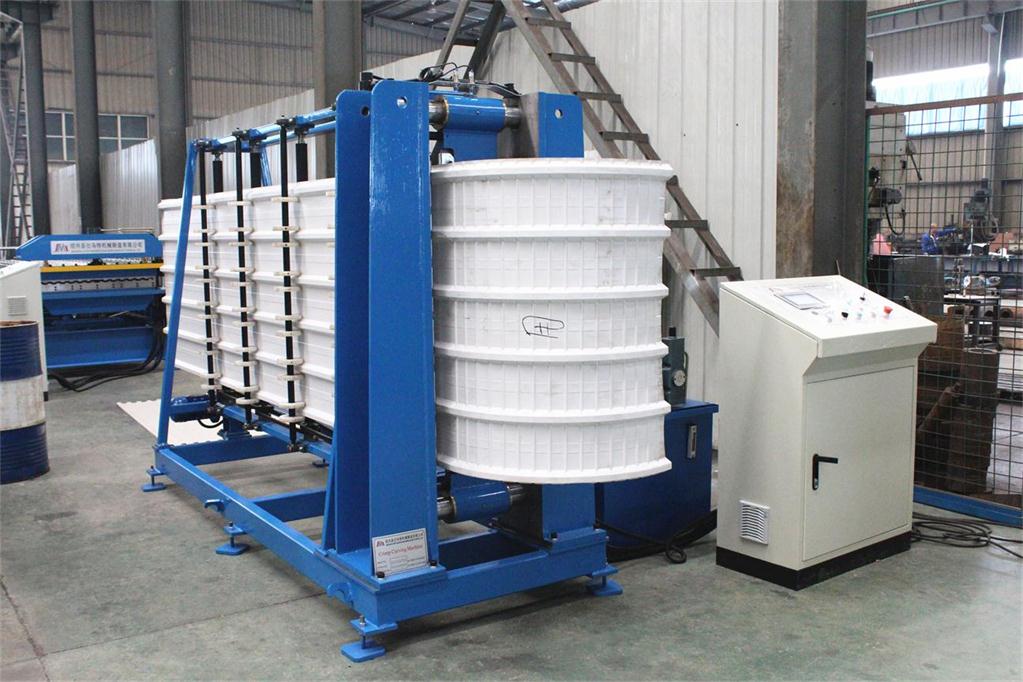

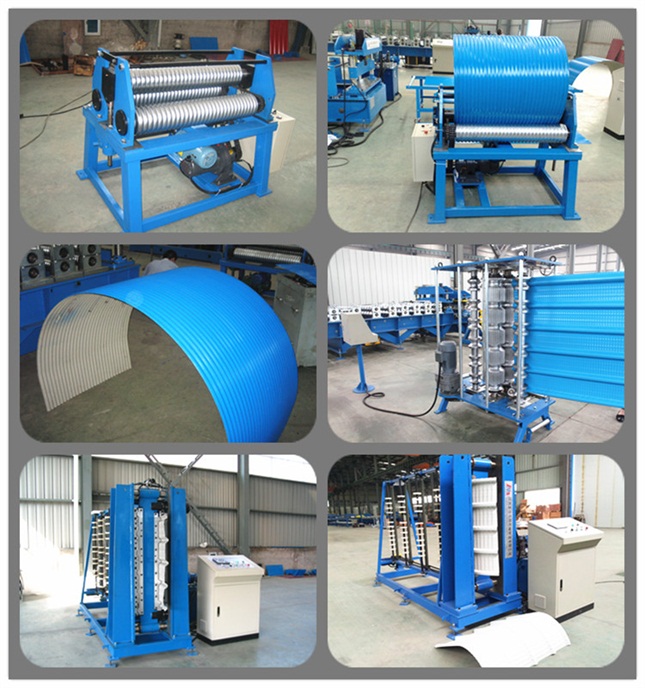

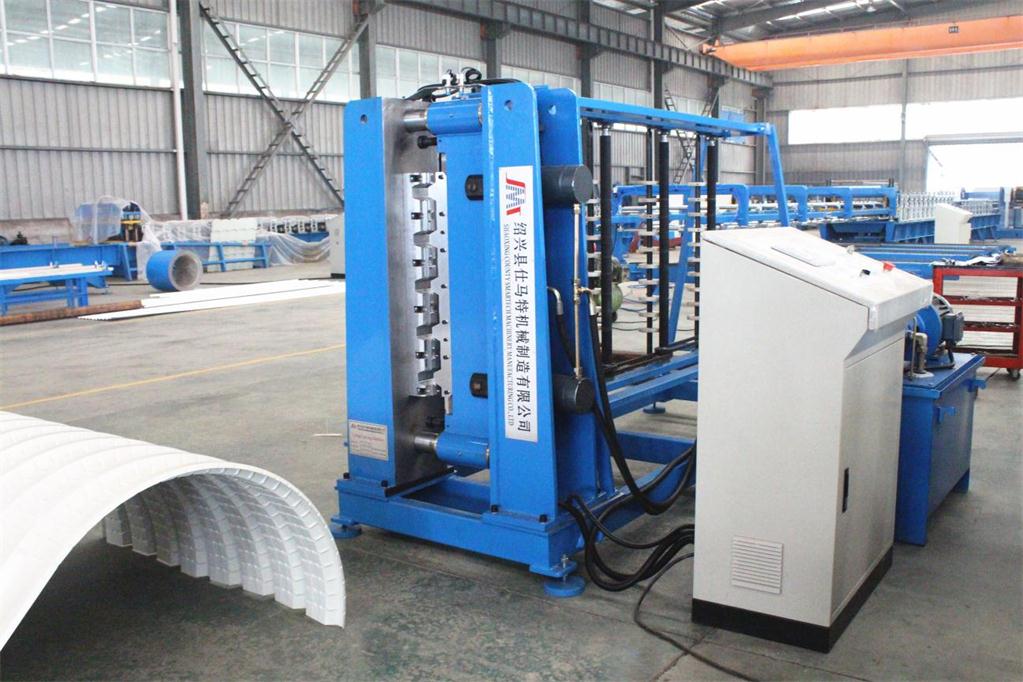

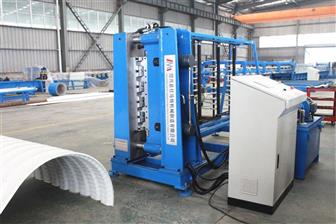

Crimping and Curving Machine consists of feeding device, curving & pressing device and electric control system. The curving machine adopts the formed pressing die to press the "pit” on the formed panels and make the panel curved. Changing the distance of the wave mark and adjusting the depth of "pit” can form into the panels with different radian. This crimping curved machine adopts the PLC control to realize the automatic controlling of wave mark space and the free-set of wave mark space data.

Application

Curving machine is used to curve the panels of steel-structured buildings in constructional engineering.

Advantages

1. The roller shaft is supported by guiding column.

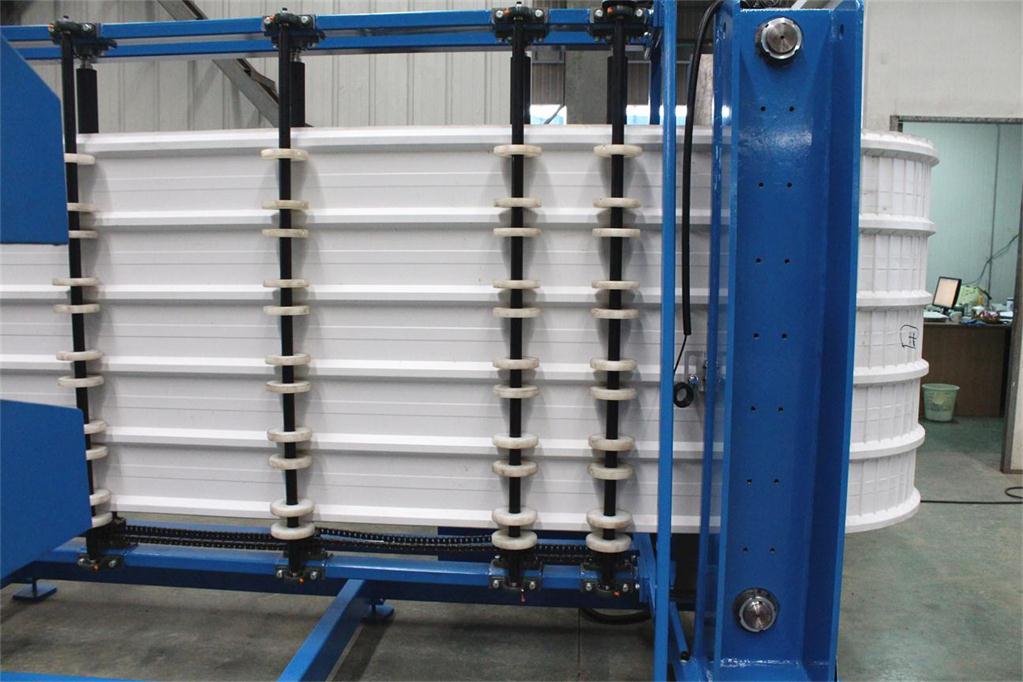

2. Double-chain transmission
3. Electric motor driven, with dynamos in every section
4. PLC Brand: Mitsubishi & Siemens

Lead Time & Delivery

60 days to produce after receiving the down payment.

Payment

30% TT for down payment, the rest of the contract value should be paid by TT before shipment.

Parameters

NO	Item		Para	Remarks
1	Suitable Material	Type	Color steel formed roofing board
		Thickness (mm)	0.4 to 0.7
		Yield Strength (Mpa)	230-300
2	Min. Curving Radius		500mm
3	Forming Speed (m/min)		2	Excluding Punching and Cutting
4	Material of Punching Die		45chromeplate

Components

No	Name		Quantity	Remarks
1	Main Machine	Feeding System	1set
		Curving and Pressing System	1set
		Hydraulic System	1set
2	Electric Control System		1set
