Description

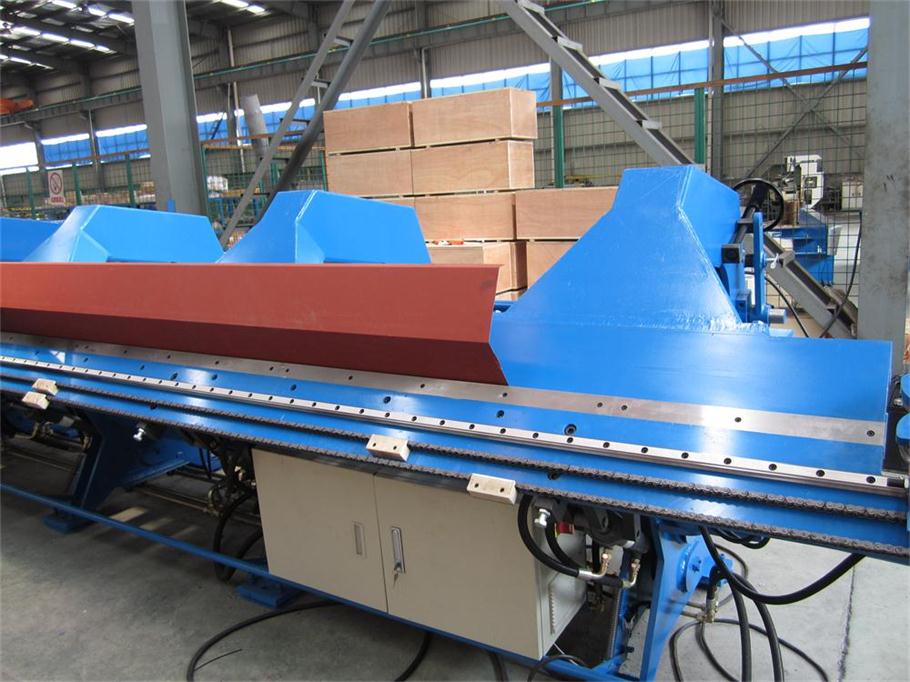

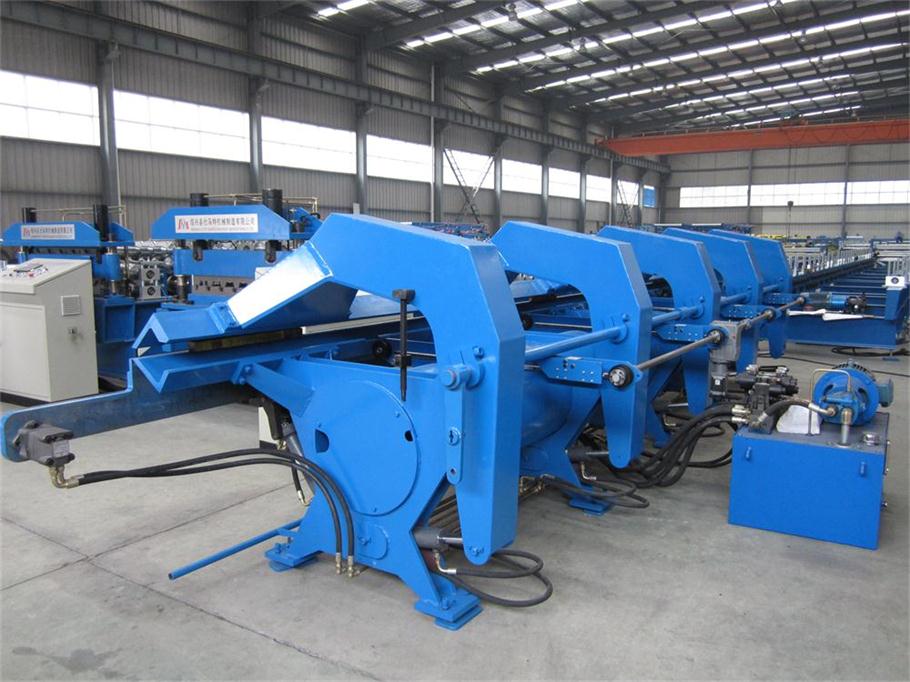

The CNC folder and slitter machine is used to fold and slit semi-manufactured goods which can not be applied in the traditional pressing system. It is applied to divide the whole board into small plates, and fold it into mental appliances of different shapes.
It is mainly composed of machine body, clamp unit, folding equipment, digital-control bracketing, slitting system, semi-manufactured goods supporting equipment, hydraulic system and PC control system, etc. Generally, the numerical control bending machine is divided into 6.5M, 8M and 10M.
Production Cycle and Delivery Time
90 days after receiving the down payment.
Payment
30% paid by TT as the down payment, and 70% of the contract value paid by TT before shipment
Main Technical Parameters
|
1. Max. folding length
|
6500
|
|
2. Throat depth:
|
800mm
|
|
3. Max. folding thickness
|
1.50mm steel at250mpa, 2.00mm soft aluminum, 1.00mm stainless steel
|
|
4. Max. slitting thickness:
|
1.50mm steel at 250mpa, 2.00mm soft aluminum, 1.00mm stainless steel
|
|
5. Max. folding angle:
|
125 degrees
|
|
6. Weight
|
5.400kg
|
|
7. Slitting speed
|
about 800mm/sec.
|
|
8. Slitting mold
|
rotary slitter
|
|
9. Control system
|
PC with 12'' LCD
|
Standard Equipment
|
Machine body
|
1pc
|
|
Clamp unit
|
1set
|
|
Folding equipment
|
1set
|
|
Digital-control backstop
|
1set
|
|
Slitting system
|
1set
|
|
Work piece supporting equipment
|
1set
|
|
Hydraulic system
|
1set
|
|
PLC control system
|
1pc
|
